Central feeding system
|

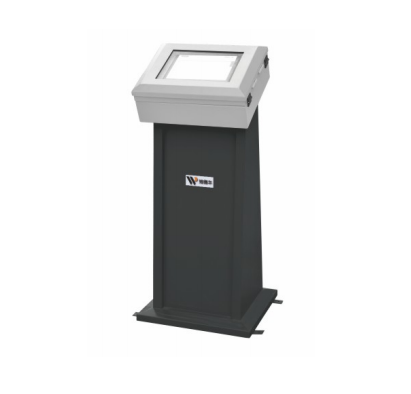

◆ Adopt Germany Siemens programmable control unit, man-machine interface use Siemens inGermany touch high-definition color LCD display, personal communication, in both Chineseand English picture operation and troubleshooting methods ◆ This system can control 12 to suck the material stand with 12 kinds of raw materials (singletube) or 6 kinds of materials (choose common feed tube), can be extended to 24 stations with24 kinds of raw materials (single tube) or 12 kinds of raw materials (select common feedingtube). ◆ Order according to the feeding signal to PLC for filling materials, and display the waiting forthe order. ◆ Have multiple password protection function, site supervisor management. ◆ Raw material system with flexible material station is available for customer choice specifiedmaterials. |
|
|

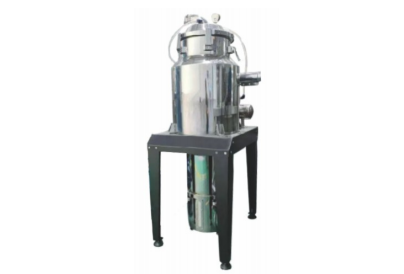

High efficiency units ,whose features include a built-in conical filter with approx, 1.6m’ filter.surface, automatic filter cleaning function, vacuum separation strengthen the dust removaldesign, large capacity dust collecting tube attached to the window, easy to distinguish. |
|
|

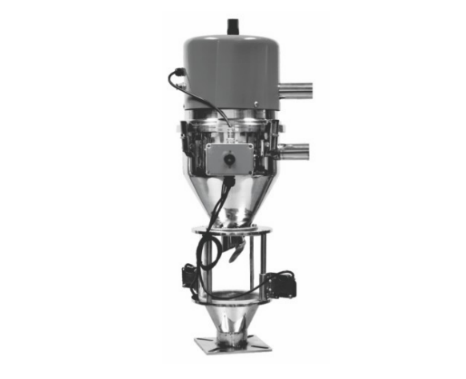

◆ In central suction material using unique cyclone air device, can be a lot of dust capture raw materials ◆ Vacuum separation integration design, beautiful generous, air tightness ◆ Inlet backflow prevention device, to prevent the reverse flow of materials ◆ Raw material level sensor use the European and American mainstream advanced science andtechnology, the use of magnetic reed switch material bits, cooperate with gravity type stainlesssteel blanking baffle design, air tightness, the proportion of different materials surface does notneed to adjust. Through the clear material maintenance door is convenient for the maintenanceand cleaning materials. ◆ Suction feeder with continues the cylinder block (optional configuration) can be directly installed in the machine feed throat. ◆ Available hopper sizes are 3,6,12,25,50,75 and 100litres |
|
|

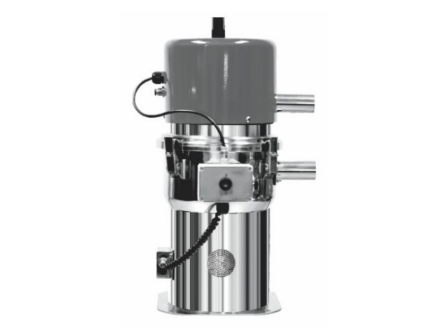

◆ In central suction material using unique cyclone air device, can be a lot of dust capture raw materials. ◆ Vacuum separation integration design, beautiful generous, air tightness. ◆ Inlet using glass window, backflow prevention device with adjustable type photoelectric switchor electrostatic capacitive material level ,can switch, inductive raw material level height,blanking mouth using the gravity type stainless steel blanking baffle, prevent the inverse.Theproportion of different materials surface smoke, do not need to adjust. ◆ Suction feeder with continues the cylinder block (optional configuration) can be directlyinstalled in the machine feed throat.Available hopper sizes are 3,6,12,25,50,75 and 100litres |
|
◆ Safe working conditions
◆ Reduce noise.
◆ Lower energy consumption.
◆ Increase image of your company.
◆ Realize the 24-hour continuous molding.
◆ Change the using methods about the combination between mold and material ofvarious kinds and colors according to the needs.
◆ Control the material convey through the central panel, realizing labor-saving.

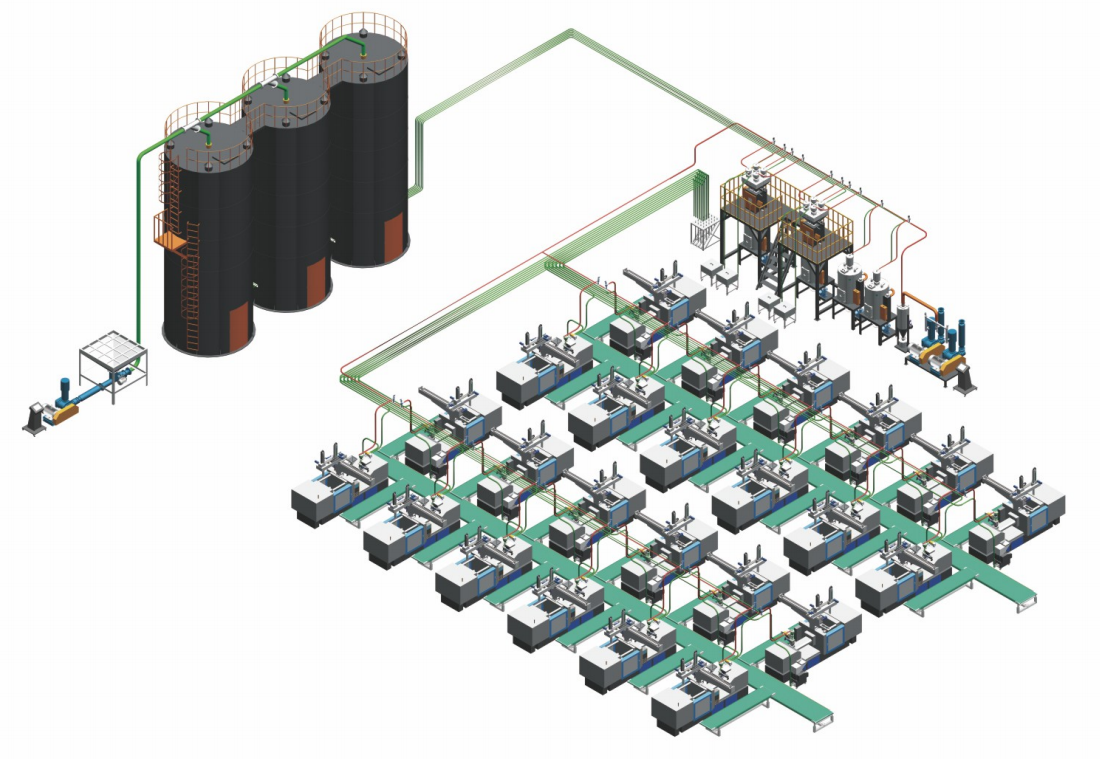

The central feeding system is the processing of raw material storage and via closed
transportation system with a pair of multi-motor automatic controller will be a variety of
different materials in accordance with the requirements to the energy savings ,as well as
a way of forming machine can lower noise and pollution of the ideal automation
system.For the existing raw materials preparation area of dry processing raw material, we
can use a dry air to transport in order to avoid raw material again be affected with damp
be affected with damp. In addition to outside the company's unique advanced controller
in the middle of the pulse dust collectorMachine design is the best weapon to prevent
system blocking, for you to worry about failure problems the company has rich design
planning ability.
