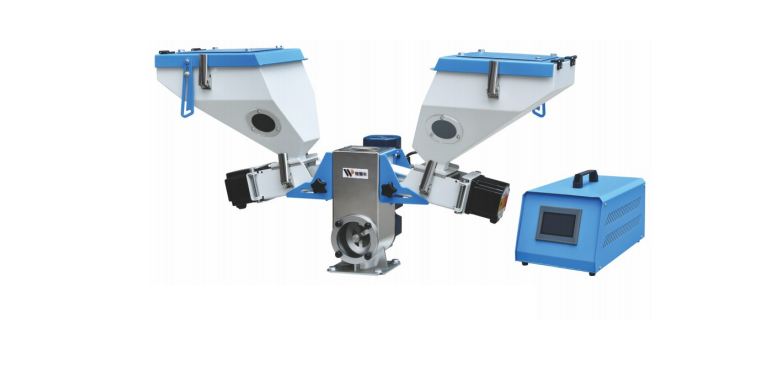

WTSCM Color Volume Master Batch measuring Machine
Master batch metering machine applicable to the new material,material, color master or automatic mixing ratio of additives. This seriesof models using brushless dc motors, according to the presetproportion mixing, through the whole conditions set automaticallyconverted into RMB microcomputer control system speed direct driveprecision screw extrusion materials and the error value is not higherthan plus or minus 1%. Of the product systematically and 50:1 motordeceleration score, the screw diameter is divided into three,20,25 16mm, can be developed six models provide 0.1 to 38 kilograms per hourfor the customer to choose different output. Otherwise double coloredmachine tool, can be in accordance with customer demand to matchany two master batch metering machine combination.
◆ All stainless steel long working life.
◆ Permanent storage and memory function.
◆ Using brushless dc-motors and no need of maintenance.
◆ Using microcomputer controller.
◆ Intelligent precise calculation, precision of screw and sleevedesign,and could measure the master batch and times add ratio ofmaterial correctly.
◆ Metering station can be dismantled without leakage from blankingmaterial, at the side viewing window switching device.
◆ Screw applied with chrome plating processing and durable.
◆ Using the concept of the Quick Change design, module type ofassembly structure and quickly,easily exchange the screw and the sleeve, easy to clean and swap.
◆ Single colored preset standards base is equipped with three tubehopper magnet as the same time ,can remove metal and preventdamage of molding machine screw.
◆ Single colored machine tool model optional blender, and needs tochoose and buy has the stirring at the same time control functions ofthe control box use collocation, make the mixture evenly;
◆ Equipped with agitator base for the new machine tool standard, it canmeet the demand of customer to double mixing;
◆ Main ingredient bucket for the pre-set standard, every single coloredunit is optional.
◆ Meet the requirements of the CE safety circuit design
| 机型Model | 单色机 | 双色机 | ||||||
|---|---|---|---|---|---|---|---|---|
| WTSCM -30-16 |
WTSCM -30-14 |
WTSCM -30-12 |
WTSCM -100-16 |
WTSCM -100-14 |
WTSCM -100-12 |
WTSCM -D-30/30 |
WTSCM -D-30/100 |
|
| 马达功率(KW) | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06*2 | 0.06*2 |
| 马达转速(rpm) | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 |
| 搅拌器功率(KW) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| 螺杆外径(mm) | 16 | 14 | 12 | 16 | 14 | 12 | ★★ | ★★ |
| 输出量(kg/hr) | 1.1-3.2 | 0.6-20 | 0.3-10 | 0.5-15 | 0.2-8 | 0.1-4 | ★ | ★ |
| 储料桶(L) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| 减速比 | 30:1 | 30:1 | 30:1 | 100:1 | 100:1 | 100:1 | 30:1/100:1 | 30:1/100:1 |
| 主原擘斗 | 选配 | 选配 | 选配 | 选配 | 选配 | 选配 | 标准 | 标准 |
| 搅拌器 | 选配 | 选配 | 选配 | 选配 | 选配 | 选配 | 标准 | 标准 |
| 脚架 | 选配 | 选配 | 选配 | 选配 | 选配 | 选配 | 选配 | 选配 |
| 外形尺寸(mm) | 580*530*290 | 580*900*290 | ||||||
| 重量(kg) | 29 | 50 | ||||||
